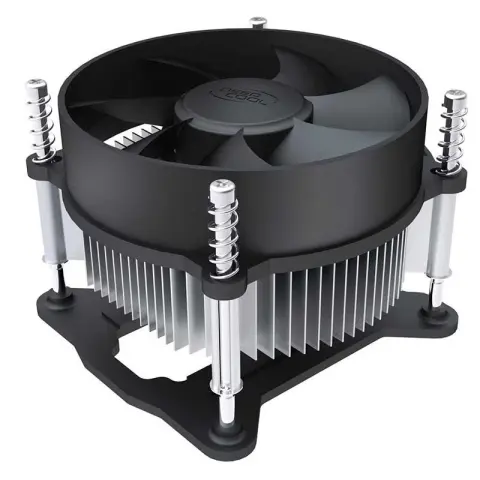

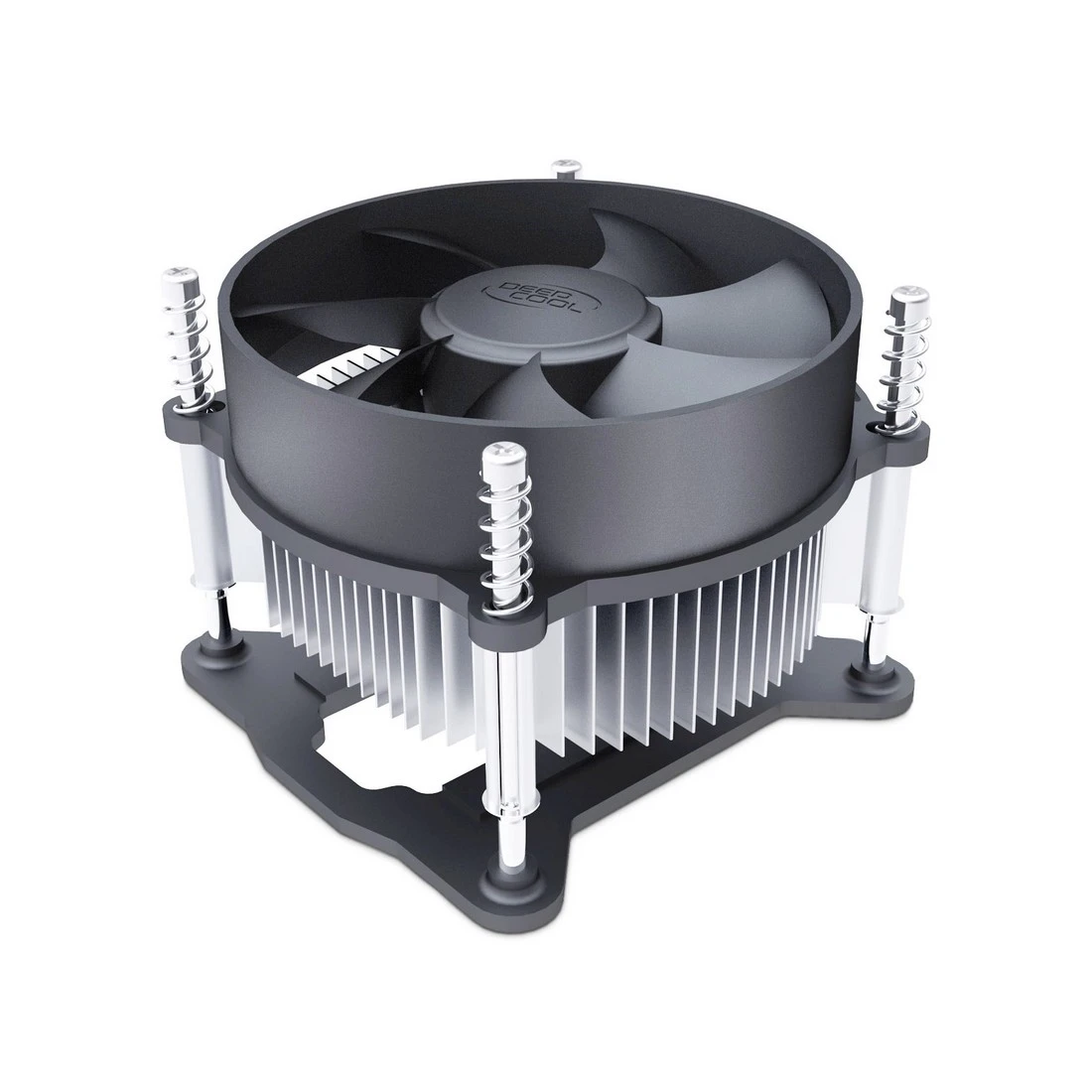

Quality heatsink with Ф92 mm fans for highly efficient heat dissipation.
Screws and back plate provide a secure installation to improve system safety.
|
Application For |
|
|
Intel Socket 65W |
LGA1200/1151/1150/1155 |
| Core i7/i5/i3 | |
| Pentium G | |
|
Technical Spec |
|
| Overall Dimension | 95X95X69.5mm |
| Fan Dimension | Φ92X25mm |
| Net Weight | 245g |
| Bearing Type | Hydro Bearing |
| Rated Voltage | 12VDC |
| Operating Voltage | 10.8～13.2VDC |
| Started Voltage | 7VDC |
| Rated Current | 0.20±10%A |
| Power Input | 2.4W |
| Fan Speed | 2200±10%RPM |
| Max. Air Flow | 42.35CFM |
| Noise | 30.1dB(A) |
