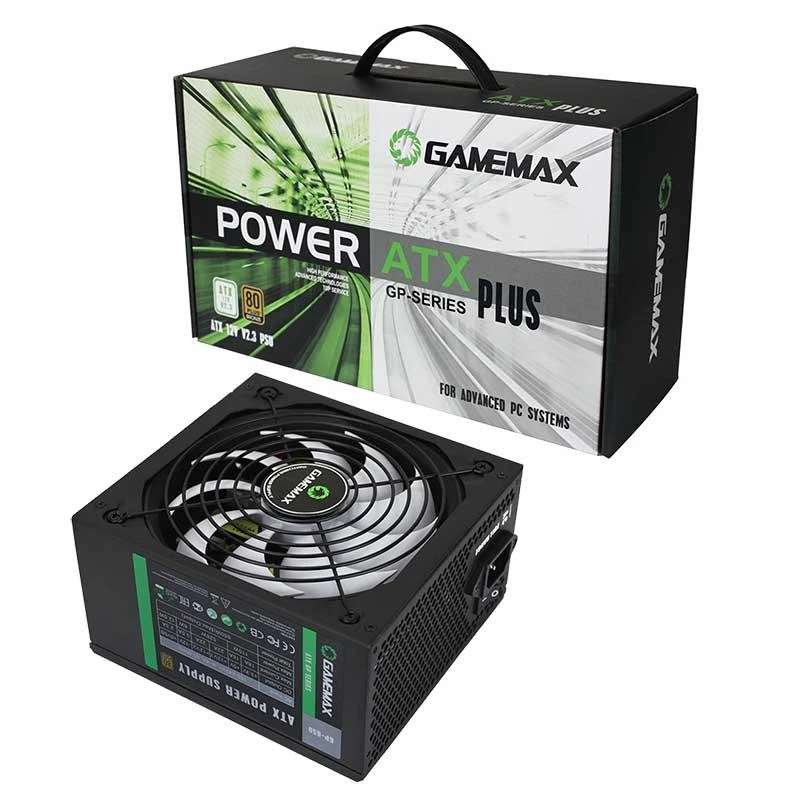

БП 650W Gamemax GP-650, 14CM FAN, Сертификация 80PlusBronze, ATX, Кабели: 20+4P, 4+4P, 3*IDE, 5*SATA, 2*PCI-E6+2P (Gamemax GP-650)
GP-650
Key FeaturesElegant black PSU casing with full black mesh cablesATX12V Ver.2.30 compliant with ATX12V Ver.2.31High efficiency PSU, up to 85% efficiencySingle 12V Rail for high compatibility and extrem gaming.
Key Features
-
Elegant black PSU casing with full black mesh cables
-
ATX12V Ver.2.30 compliant with ATX12V Ver.2.31
-
High efficiency PSU, up to 85% efficiency
-
Single 12V Rail for high compatibility and extreme high current output
-
Longer 20 + 4 and 4 + 4 pins up to 550mm is easy for high-end tower chassis installation
-
14cm silent black fan with smart thermal fan speed control circuit
-
Full protection functions with OVP / UVP / OPP / SCP / SIP
-
Safety and EMC certified by CE
-
ECO friendly by RoHS and Erp 2013 directives
| Connectors: | |
| 1 | 20+4 Pin Main Connectors: |
| 1 |
Lastest PC case |
| 5 |
Lastest PC case |
| 3 |
Lastest PC case |
| 2 |
Lastest PC case |
| Dimensions: | 158mm x 85mm x 150mm (W x H x D) |
| Input Voltage: | 100-240 VAC |
| Input Current: | 4-8A |
| Input Frequency Range: | 50-60Hz |
| PFC: | Active PFC (>.99) |
| Power Good Signal: | 100-500 ms |
| Hold Up Time: | >17ms |
| Efficiency: | > 81% (85% max) |
| MTBF: | > 100,000 Hours |
| Protection: | OVP / UVP/ OTP / OCP/ OLP/ OPP/ SCP |
| Power: | 650W |
| Operation Temperature: | 0-40癈 |
| Safety: | CE/FCC/CB |
| Cooling: | 140mm Ultra Slient Fan |
| Noise: | <25dBa |
| 80 Plus Certified: | Yes - 80 Plus Bronze |
| Manufacturer Part Number: | GP-650 |
| EAN Number: | 6931858720069 |
| Has Mains Plug: | No |
| Colour: | Black |
| What's In The Box: | Power Supply Screws Manual 2 x Cable Ties |
| Unit (Product) Dimensions (mm): | 150mm x 85mm x 140mm (W x H x D) |
| Packaging Dimensions (mm): | 300mm x 180mm x 115mm (W x H x D) |
| Net Weight (KGs): | 1.7 KGs |
| Gross Weight (KGs): | 2.1 KGs |
